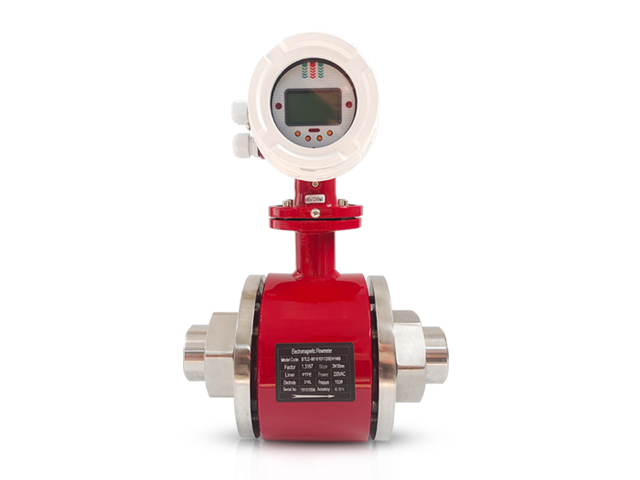

Hot sale sewage electromagnetic flowmeter is ideal for conductive liquids. It is composed of a sensor and an intelligent conversion part. Water flowmeter can measure the volume flow of various conductive liquids. The measured media include acid, alkali, salt and paper pulp, mud, waste water, sea water, and solid-liquid liquids. In addition, the sensor adopts an integral sealed structure, and the measuring tube and the shell are integrated, which is moisture-proof and waterproof, and is suitable for underground or humid environment installation.
| Applicable Medium | Various conductive liquids |
| Nominal Diameter | DN6-DN3000mm |
| Flow Direction | Two-way measurement |
| Repeatability Error | ±0.1% |
| Accuracy | ±0.5%FS |
| Signal output | Pulse, 4-20mA, RS485, Modbus protocol; Hart protocol (optional), Profibus DP (optional) |
| Relative humidity | 5％-90％ |
| Power supply | DC24V (20-36V) |
| AC220V (85-250V) | |
| Lining material | CR: -25-+60℃(wear-resisting) |
| PU: -25-+80℃ (Strong resistance to wear and tear) | |
| PTFE: -25-+120℃ (Corrosion resistant) | |
| FPM: -25-+180℃ (High temperature resistant) | |
| F46: -25-+ 180℃ (Corrosion resistance; Resistant to high and negative pressure) | |
| PFA: -25-+ 180℃ (Corrosion resistance; Resistant to high and negative pressure) | |
| Electrode material | 316L (No corrosion/weak corrosion) |
| HB (Resistant to non-oxidizing acid, alkali and salt) | |
| HC (Oxidation-resistant acid, alkali and salt) | |
| Ti (Chloride) | |
| Ta (Strong corrosion resistance) | |
| Pt (Apply to almost all chemicals except aqua regia and ammonium salts) | |
| Nominal Pressure | DN50≤M4.0Mpa |
| DN65-DN250≤l.6Mpa | |
| DN300-DN1000≤1.0Mpa | |
| DN1200-DN2000≤0.6Mpa | |
| Or other specified by order | |
| Protection Grade | IP65; IP68 |
